Protect Component

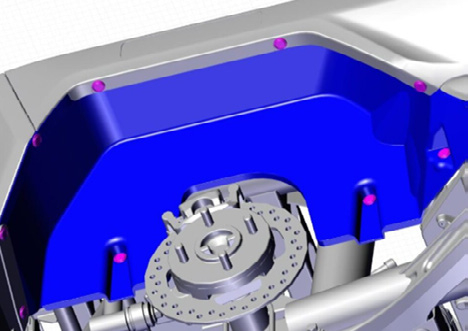

08003 Rear Wheel Liner (Removal and Replacement)
Correction Code : 08003 Working Hours : 0.3H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove the rear wheel assy . See link below
Step 2
Rvmove the clip

Install
Installation procedure is the reverse of removal.
