Body
06011 Front Facia (Removal and Replacement)
Correction Code : 06011 Working Hours : 0.3H
NOTE:
Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.
Remove
Step 1
Remove Front Upper Side Cover. See link below
Step 2

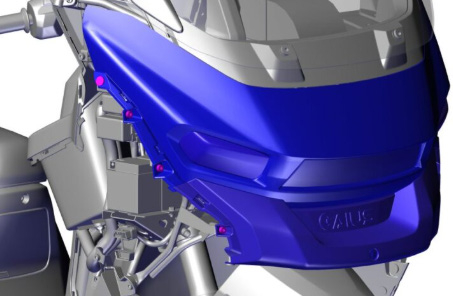

Remove the clip and bolt

Step 3

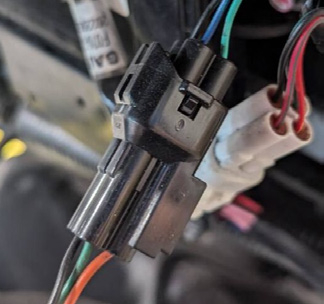

Remove the DVR Plug

Step 4
Pull the top of the Front Facia outward

Step 5
Pull the top of the Front Facia outward

Step 6

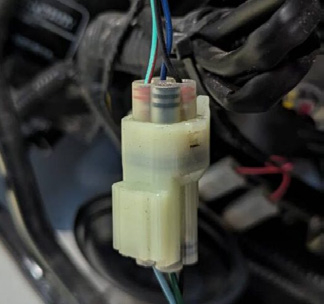

Remove the headlight and LH/RH signal position light plug

Precautions
The 12V battery must be disconnected before install the DVR plug
Step 1
Disconnect the 12V battery Negative

Install
Installation procedure is the reverse of removal.
