Brakes

02009 Front Brake Pads (Removal and Replacement)

Correction Code : 02009 Working Hours : 0.4H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

Remove Front Brake Caliper . See link below

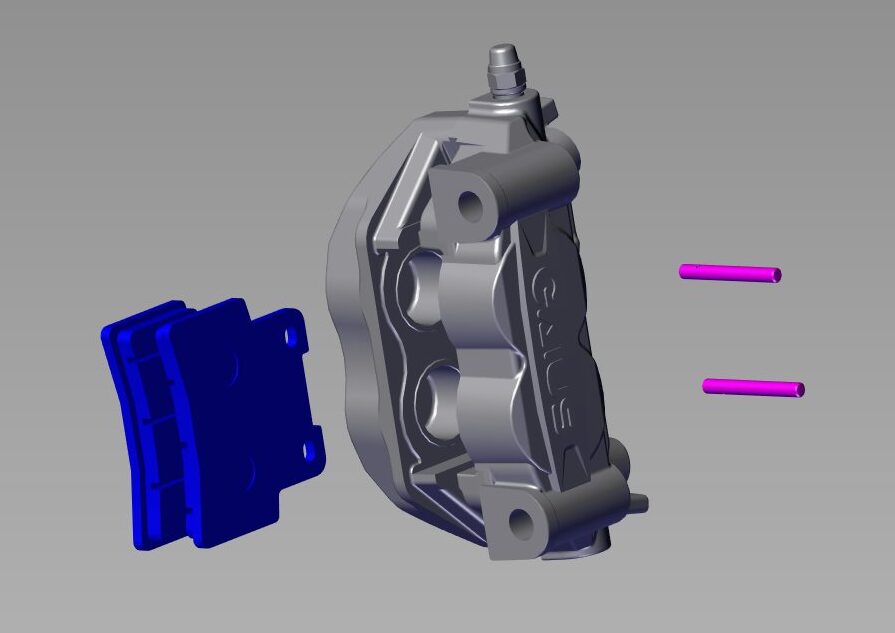

Remove Front brake pads not need to remove brake oil pipe

02005 Front Brake Caliper (Removal and Replacement)

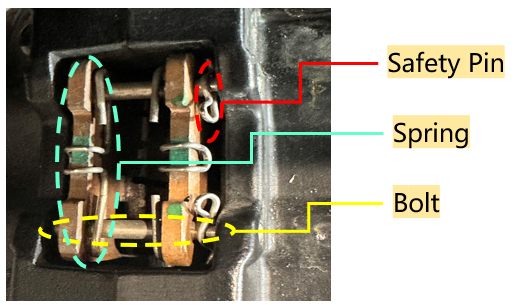

Please note the safety pin of the brake pad bolt and spring properly

Remove the brake pad springs and pin than remove Brake pads

Install

Installation procedure is the reverse of removal.
