Brakes

02005 Front Brake Caliper (Removal and Replacement)

Correction Code : 02005 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove

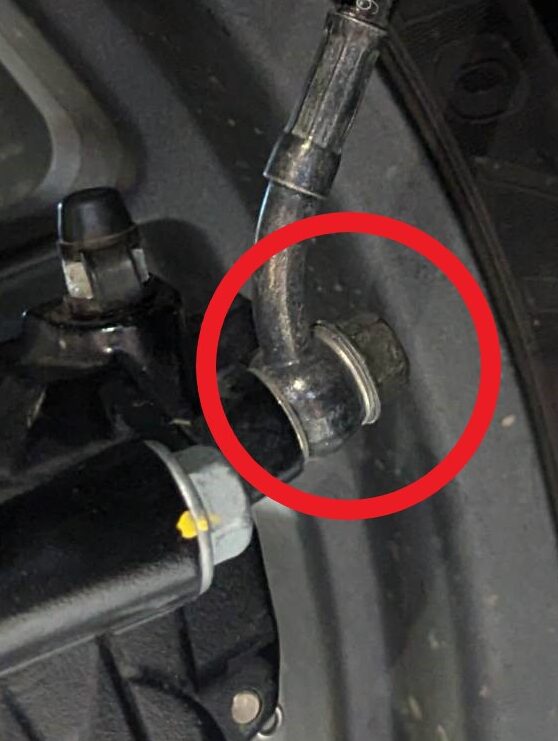

Remove the Front Brake Caliper brake line bolt , And use a container to collect brake fluid (Torque : 30 N-m )

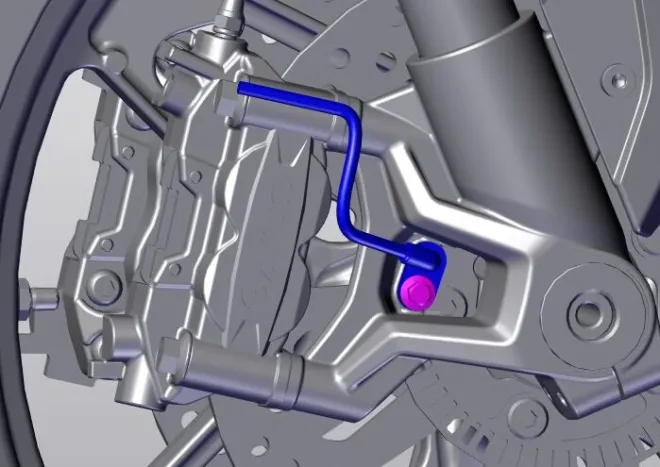

Remove the wheel sensor from axle.

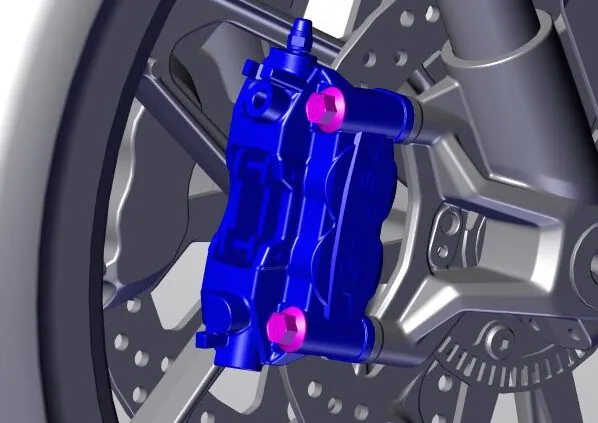

Remove the front caliper mounting fasteners to remove the caliper.( Torque : 65 N-m )

Install

Installation procedure is the reverse of removal.

Foot brake

Perform brake fluid bleeding . See link below

02004 Brake oil ( (Replacement)
