Drive Unit

01001 PCU (Removal and Replacement)

Correction Code : 01001 Working Hours : 0.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.

Do not stack correction codes unless explicitly told to do so.

Remove Front Facia . See link below

06011 Front Facia (Removal and Replacement)

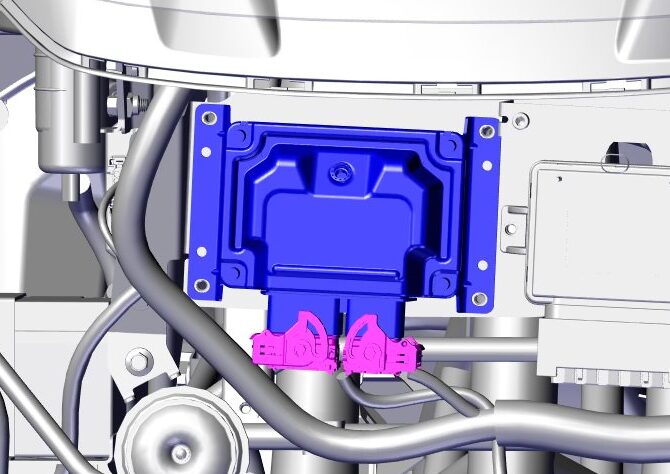

The PCU can be removed by removing the bolts and the electrical connections.

Install

Installation procedure is the reverse of removal.
