Body

06011 Front Facia (Removal and Replacement)

Correction Code : 06011 Working Hours : 0.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Front Upper Side Cover. See link below

06001 Front Upper Side Cover (Removal and Replacement)

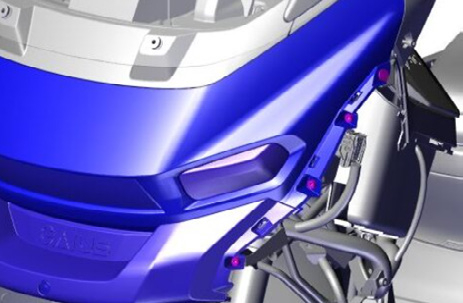

Remove the clip and bolt

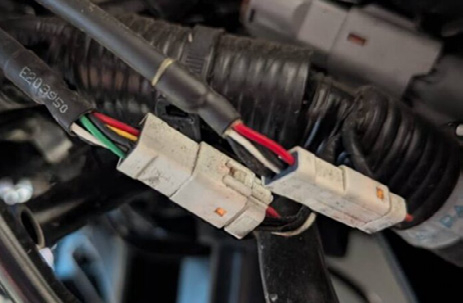

Remove the DVR Plug

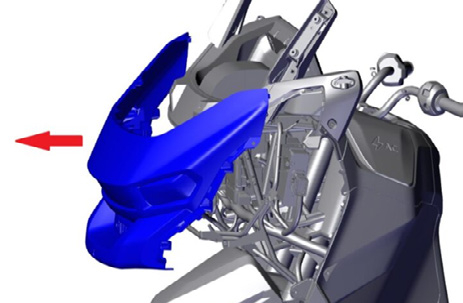

Pull the top of the Front Facia outward

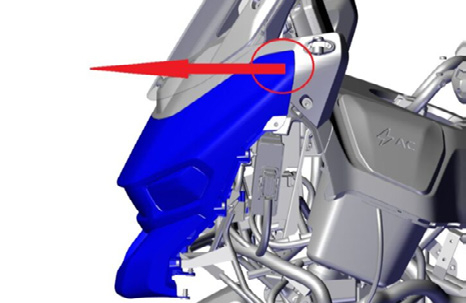

Pull the top of the Front Facia outward

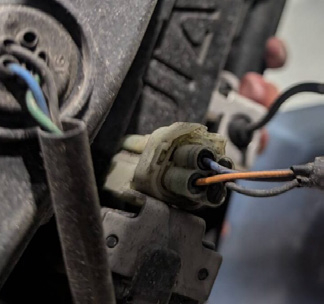

Remove the headlight and LH/RH signal position light plug

Precautions

The 12V battery must be disconnected before install the DVR plug

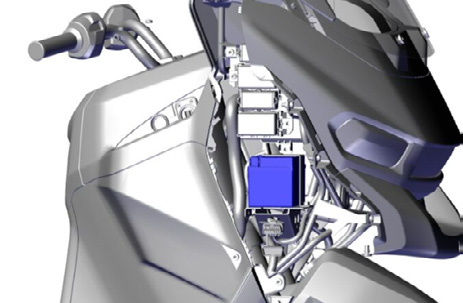

Disconnect the 12V battery Negative

Install

Installation procedure is the reverse of removal.
