Suspension Parts

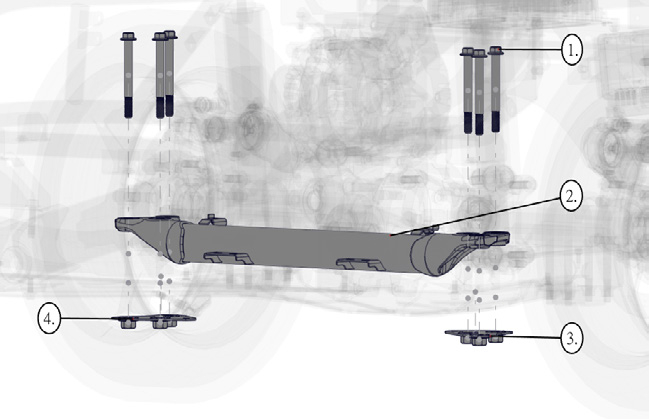

04006 Swing Arm Cross Beam Assembly Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9102010-10 | M10-1.5*80 | 6 |
| 2. | RP3-SP02029 | Cross Beam Assy | 1 |
| 3. | RP3-SP02036 | Cross Beam plate LH Assy | 1 |
| 4. | RP3-SP02037 | Cross Beam plate RH Assy | 1 |
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9102010-10 | M10-1.5*80 | 6 |
| 2. | RP3-SP02029 | Cross Beam Assy | 1 |
| 3. | RP3-SP02036 | Cross Beam plate LH Assy | 1 |
| 4. | RP3-SP02037 | Cross Beam plate RH Assy | 1 |
