Body Component

07018 Canopy Bracket (Removal and Replacement)

Correction Code : 07018 Working Hours : 1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and working hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Canopy . See link belowStep

07017 Canpy ( Removal and Replacement )

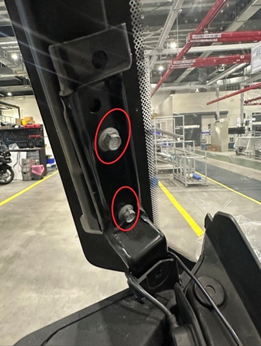

Removal Canopy Bracket fixing bolts (Torque: 15 N-m)

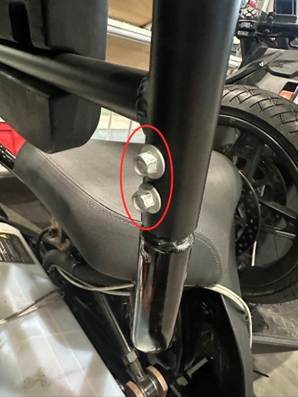

Removal Canopy Bracket fixing bolts (Torque: 15 N-m)

Install

Installation procedure is the reverse of removal.
