Drive Unit Parts

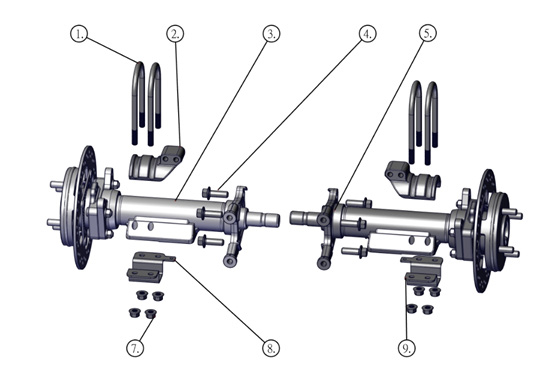

01003 Drive Shaft Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | 9109002-10 | U BOLT | 4 |
| 2. | RP3-SP02061 | U Bolt Collar Weldment | 2 |
| 3. | RP3-DU02013 | Rear Axle Assembly, LH | 1 |
| 4. | 9102002-12 | Screw,M12-1.75×35 | 8 |
| 5. | RP3-DU02014 | Rear Axle Assembly, RH | 1 |
| 7. | 9203006-10 | M10 NUT | 8 |
| 8. | RP3-SP02072 | U bolt Bracket Assembly, LH | 1 |
| 9. | RP3-SP02074 | U bolt Bracket Assembly, RH | 1 |
