Body Component

07011 Rollover Sensor (Removal and Replacement)

Correction Code : 07011 Working Hours : 0.2H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove the seat Apron. See link below

06007 Seat Apron (Removal and Replacement)

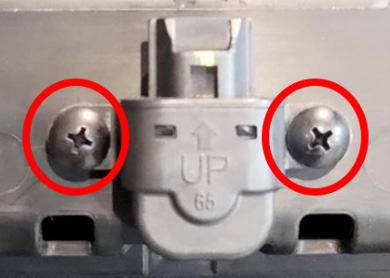

Remove the screw for the sensor

Install

Installation procedure is the reverse of removal.
