Wheel and Tires

10001 Front Wheel Assembly (Removal and Replacement)

Correction Code : 10001 Working Hours : 0.3H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Ensure that the vehicle is properly parked and power has been switched off before preparing to remove the seat.

Remove Front Fender. See link below

08001 Front Fender (Removal and Replacement)

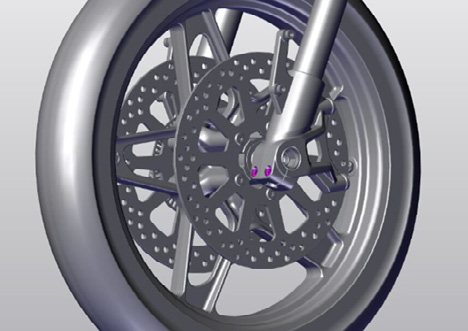

Loosen the front axle left fixing bolt .( Torque : 24 N-m )

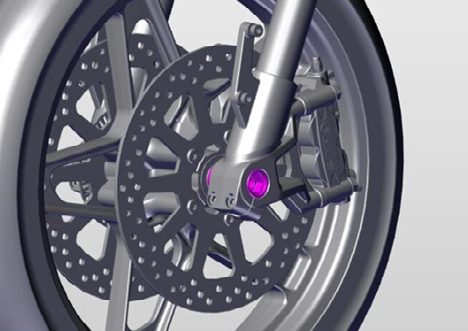

First loosen the front axle ( Torque : 85 N-m )

Raise Vehicle . See link below

00001 Raise Vehicle

Install

Installation procedure is the reverse of removal.

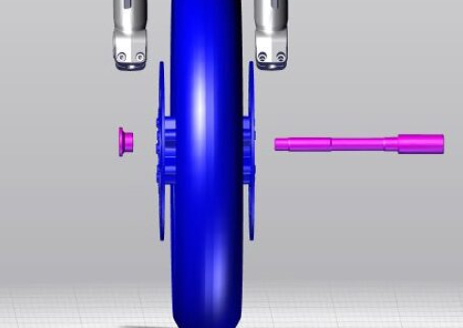

Tip :Please pay attention to the installation direction of the Axle spacer
