Chassis

03002 Bottom Shear Panel (Removal and Replacement)

Correction Code : 03001 Working Hours : 0.1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

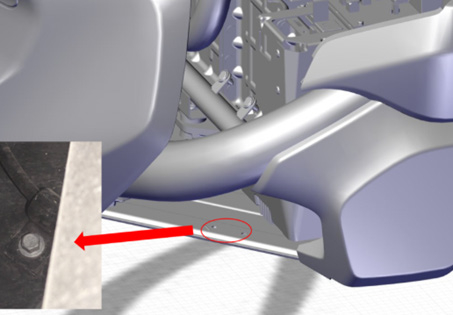

Remove left and right brake hose fixing bolt

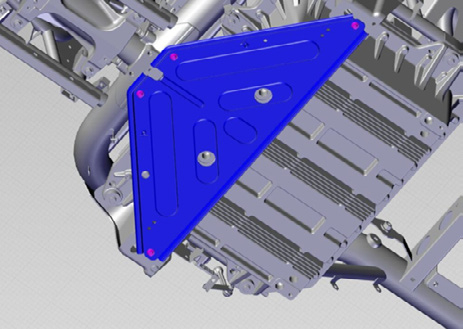

Remove Bottom Shear Panel bolt ( Torque : 24 N-m )

Install

Installation procedure is the reverse of removal.
