Brakes Parts

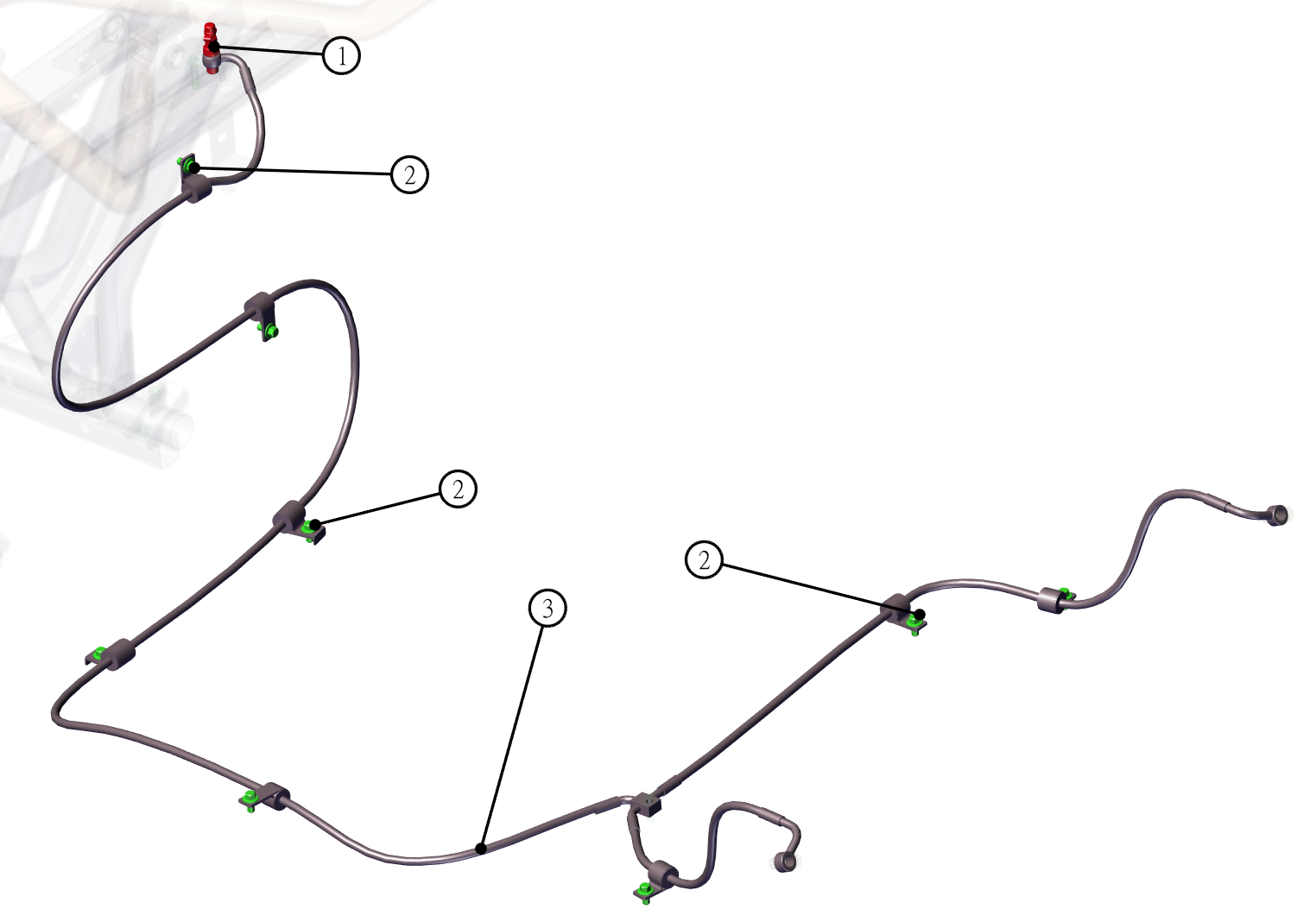

02028 Brake Line ( Tilt – RearCaliper ) Parts
| No. | Part Number | Part Name | QTY. |
|---|---|---|---|
| 1. | RP3-BK03016-AA | Brake Hose Bleed Bolt | 1 |
| 2. | 9102003-M6 | Screw, M6-1.0X12mm | 9 |
| 3. | RP3-BK03014-AA | Brake Line ( Tilt – RearCaliper ) | 1 |
| 4. | 9102001-M6 | Screw, M6-1.0X20mm | 1 |
| 5. | RP3-BK03011 | Brake line bolt washer M10 | 2 |
