Brakes

02025 Foot Brake Cylinder with Reservoir (Removal and Replacement)

Correction Code : 02025 Working Hours : 1H

Pencil Pencil

NOTE:

Unless otherwise explicitly stated in the procedure, the above correction code and Working Hours reflect all of the work required to perform this procedure, including the linked procedures.
Do not stack correction codes unless explicitly told to do so.

Remove

Remove Front Lower Side Cover. See link below

06009 Front Lower Side Cover (Removal and Replacement)

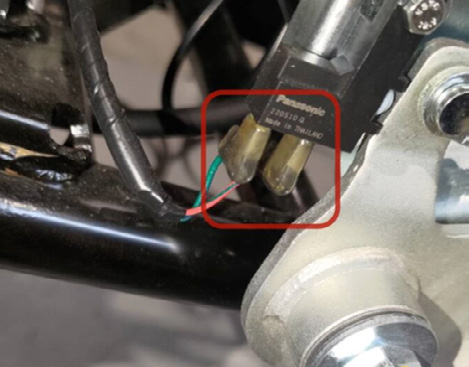

Remove the electrical connector

Remove hose clamps and disassemble fuel line

Tips : Before removing the fuel line, please drain the brake fluid from the tank first.

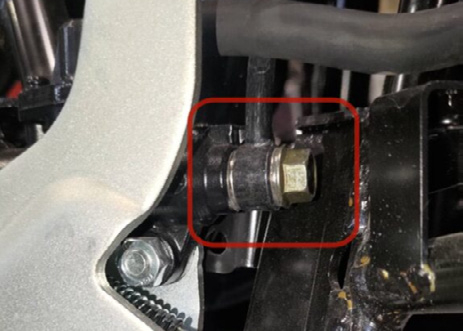

Disassemble the bolts and remove the fuel line ( Torque : 30 N-m )

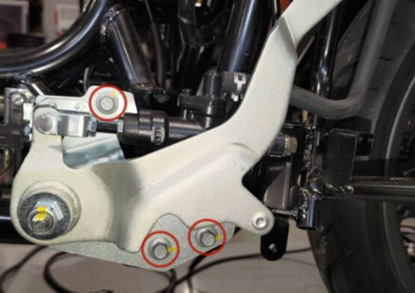

Remove bolt X3 from foot brake cylinder ( Torque : 50 N-m )

Install

Installation procedure is the reverse of removal.
